#include <alignment.H>

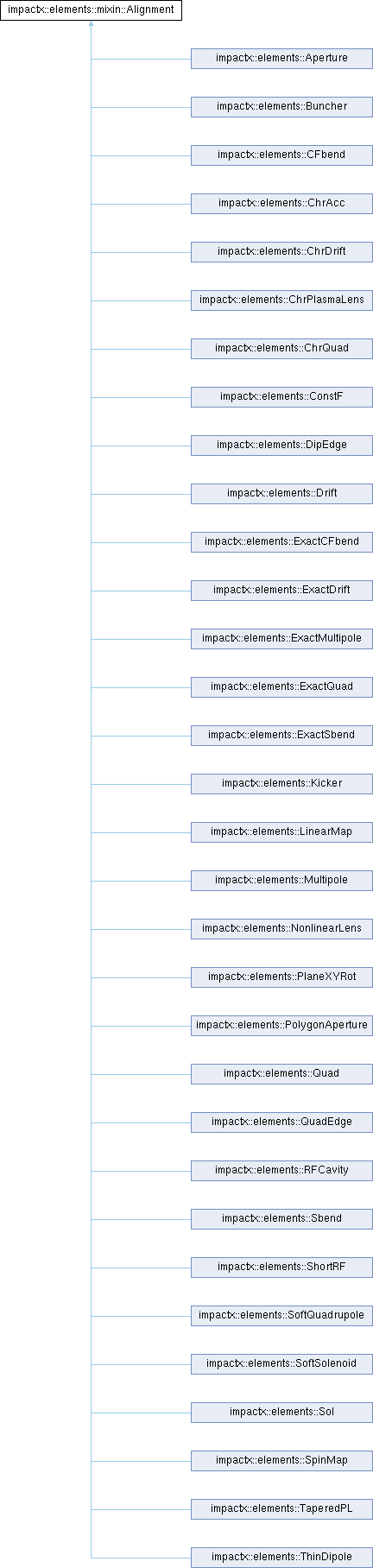

Inheritance diagram for impactx::elements::mixin::Alignment:

Public Member Functions
	Alignment (amrex::ParticleReal dx, amrex::ParticleReal dy, amrex::ParticleReal rotation_degree)

	Alignment ()=default

	Alignment (Alignment const &)=default

Alignment &	operator= (Alignment const &)=default

	Alignment (Alignment &&)=default

Alignment &	operator= (Alignment &&rhs)=default

	~Alignment ()=default

void	compute_constants (RefPart const &refpart)

template<typename T_Real>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	shift_in (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py) const

template<typename T_Real>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	rotate_in (T_Real &AMREX_RESTRICT sx, T_Real &AMREX_RESTRICT sy) const

template<typename T_Real>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	shift_out (T_Real &AMREX_RESTRICT x, T_Real &AMREX_RESTRICT y, T_Real &AMREX_RESTRICT px, T_Real &AMREX_RESTRICT py) const

template<typename T_Real>
AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void	rotate_out (T_Real &AMREX_RESTRICT sx, T_Real &AMREX_RESTRICT sy) const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	dx () const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	dy () const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal	rotation () const

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE bool	misaligned () const

AMREX_GPU_HOST AMREX_FORCE_INLINE Map6x6	rotation_map () const

AMREX_GPU_HOST AMREX_FORCE_INLINE Map6x6	rotate_aligned_map (Map6x6 const &R) const

Public Attributes
amrex::ParticleReal	m_dx = 0

amrex::ParticleReal	m_dy = 0
	horizontal translation error [m]

amrex::ParticleReal	m_rotation = 0
	vertical translation error [m]

Static Public Attributes
static constexpr amrex::ParticleReal	degree2rad

Private Attributes
amrex::ParticleReal	m_sin_rotation
	rotation error in the transverse plane [rad]

amrex::ParticleReal	m_cos_rotation
	std::sin(m_rotation)

Detailed Description

This is a helper class for lattice elements with horizontal/vertical alignment errors

Constructor & Destructor Documentation

◆ Alignment() [1/4]

impactx::elements::mixin::Alignment::Alignment	(	amrex::ParticleReal	dx,
		amrex::ParticleReal	dy,
		amrex::ParticleReal	rotation_degree )

inline

A finite-length element

Parameters

dx	horizontal translation error in m
dy	vertical translation error in m
rotation_degree	rotation error in the transverse plane [degrees]

◆ Alignment() [2/4]

impactx::elements::mixin::Alignment::Alignment ( )

default

◆ Alignment() [3/4]

impactx::elements::mixin::Alignment::Alignment ( Alignment const & )

default

◆ Alignment() [4/4]

impactx::elements::mixin::Alignment::Alignment ( Alignment && )

default

◆ ~Alignment()

impactx::elements::mixin::Alignment::~Alignment ( )

default

Member Function Documentation

◆ compute_constants()

void impactx::elements::mixin::Alignment::compute_constants ( RefPart const & refpart )

inline

Compute and cache the constants for the push.

In particular, used to pre-compute and cache variables that are independent of the individually tracked particle.

Parameters

refpart reference particle

◆ dx()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal impactx::elements::mixin::Alignment::dx ( ) const

inline

Horizontal translation error

Returns: horizontal translation error in m

◆ dy()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal impactx::elements::mixin::Alignment::dy ( ) const

inline

Vertical translation error

Returns: vertical translation error in m

◆ misaligned()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE bool impactx::elements::mixin::Alignment::misaligned ( ) const

inline

Whether the element has any (nonzero) translation or rotation error.

Used to unswitch the alignment shift/rotate out of the per-particle push: a perfectly aligned element skips the (otherwise identity) transforms. Cheap to evaluate and called once per push launch (not per particle), so it reads the current alignment errors directly instead of caching.

Returns: true if dx, dy, or rotation is nonzero

◆ operator=() [1/2]

Alignment & impactx::elements::mixin::Alignment::operator= ( Alignment && rhs )

default

◆ operator=() [2/2]

Alignment & impactx::elements::mixin::Alignment::operator= ( Alignment const & )

default

◆ rotate_aligned_map()

AMREX_GPU_HOST AMREX_FORCE_INLINE Map6x6 impactx::elements::mixin::Alignment::rotate_aligned_map ( Map6x6 const & R ) const

inline

Apply the transverse rotation (roll) alignment error to an element's intrinsic linear transport map.

Elements call this on their own transport_map result just before returning, so that linear-optics consumers (transfer_map, map_trace, envelope tracking) see the same roll that the particle push applies via

See also: shift_in /; shift_out. A perfectly roll-aligned element returns R unchanged.

Parameters

R	the element's intrinsic (zero-rotation) 6x6 transport map

Returns: the lab-frame map A * R * A^T (see

See also: rotation_map)

◆ rotate_in()

template<typename T_Real>

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void impactx::elements::mixin::Alignment::rotate_in	(	T_Real &AMREX_RESTRICT	sx,
		T_Real &AMREX_RESTRICT	sy ) const

inline

Rotate a transverse vector into the alignment error frame

The

See also: compute_constants method must be called before pushing particles through this operator.

Parameters

[in,out]	sx	horizontal spin/vector component
[in,out]	sy	vertical spin/vector component

◆ rotate_out()

template<typename T_Real>

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void impactx::elements::mixin::Alignment::rotate_out	(	T_Real &AMREX_RESTRICT	sx,
		T_Real &AMREX_RESTRICT	sy ) const

inline

Rotate a transverse vector out of the alignment error frame

The

See also: compute_constants method must be called before pushing particles through this operator.

Parameters

[in,out]	sx	horizontal spin/vector component
[in,out]	sy	vertical spin/vector component

◆ rotation()

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE amrex::ParticleReal impactx::elements::mixin::Alignment::rotation ( ) const

inline

rotation error in the transverse plane

Returns: rotation error in the transverse plane [degrees]

◆ rotation_map()

AMREX_GPU_HOST AMREX_FORCE_INLINE Map6x6 impactx::elements::mixin::Alignment::rotation_map ( ) const

inline

6x6 linear map of the transverse rotation (roll) alignment error.

Returns the lab-from-element rotation A = Rot(theta) acting on the (x, y) and (px, py) sub-blocks and the identity on (t, pt). It is the linear-map analogue of

See also: shift_in /; shift_out: the aligned (lab-frame) map of an element is A * R * A^T .

sin/cos are evaluated from m_rotation directly rather than the

See also: compute_constants cache, because the linear-optics path (transfer_map, map_trace, envelope tracking) does not call compute_constants().

Returns: the 6x6 transverse-rotation map in (x, px, y, py, t, pt) order

◆ shift_in()

template<typename T_Real>

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void impactx::elements::mixin::Alignment::shift_in	(	T_Real &AMREX_RESTRICT	x,
		T_Real &AMREX_RESTRICT	y,
		T_Real &AMREX_RESTRICT	px,
		T_Real &AMREX_RESTRICT	py ) const

inline

Shift the particle into the alignment error frame

The

See also: compute_constants method must be called before pushing particles through this operator.

Parameters

[in,out]	x	horizontal position relative to reference particle
[in,out]	y	vertical position relative to reference particle
[in,out]	px	horizontal momentum relative to reference particle
[in,out]	py	vertical momentum relative to reference particle

◆ shift_out()

template<typename T_Real>

AMREX_GPU_HOST_DEVICE AMREX_FORCE_INLINE void impactx::elements::mixin::Alignment::shift_out	(	T_Real &AMREX_RESTRICT	x,
		T_Real &AMREX_RESTRICT	y,
		T_Real &AMREX_RESTRICT	px,
		T_Real &AMREX_RESTRICT	py ) const

inline

Shift the particle out of the alignment error frame

The

See also: compute_constants method must be called before pushing particles through this operator.

Parameters

[in,out]	x	horizontal position relative to reference particle
[in,out]	y	vertical position relative to reference particle
[in,out]	px	horizontal momentum relative to reference particle
[in,out]	py	vertical momentum relative to reference particle

Member Data Documentation

◆ degree2rad

amrex::ParticleReal impactx::elements::mixin::Alignment::degree2rad

staticconstexpr

Initial value:

=

ablastr::constant::math::pi_v<amrex::ParticleReal> / amrex::ParticleReal{180}

amrex::ParticleReal

amrex_particle_real ParticleReal

ablastr::constant::math::pi_v

constexpr auto pi_v

◆ m_cos_rotation

amrex::ParticleReal impactx::elements::mixin::Alignment::m_cos_rotation

private

std::sin(m_rotation)

◆ m_dx

amrex::ParticleReal impactx::elements::mixin::Alignment::m_dx = 0

◆ m_dy

amrex::ParticleReal impactx::elements::mixin::Alignment::m_dy = 0

horizontal translation error [m]

◆ m_rotation

amrex::ParticleReal impactx::elements::mixin::Alignment::m_rotation = 0

vertical translation error [m]

◆ m_sin_rotation

amrex::ParticleReal impactx::elements::mixin::Alignment::m_sin_rotation

private

rotation error in the transverse plane [rad]

The documentation for this struct was generated from the following file:

/home/docs/checkouts/readthedocs.org/user_builds/impactx/checkouts/26.06/src/elements/mixin/alignment.H
